Topographic Survey Data Needed for Urban Redevelopment and Site Design

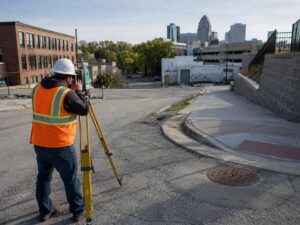

A topographic survey for urban redevelopment in Phenix City has to capture far more than raw ground contours. Developed sites carry layers of built features, all of which affect how a design team works with the property. Curbs, pavement, walls, and utility structures all sit on top of the natural ground. Each one needs to be mapped accurately before the design work can move forward with confidence.

Urban Surveys Need More Than Ground Contours

A vacant field only needs contour lines to describe its shape. A developed urban site is far more complex. Buildings, hard surfaces, walls, and other features all mix with the natural ground, and a simple contour map cannot show that mix on its own.

A useful urban topographic survey captures both layers together. It gives the design team an accurate picture of the ground and everything built on top of it at the same time. That complete view is what design work depends on. A partial view leads to conflicts later.

Which Features Belong on a Redevelopment Base Map?

Redevelopment design needs a base map that shows the site as it really is today. A simplified version does not cut it.

Several kinds of features usually need to be included:

• Buildings and other permanent structures on or near the site
• Curb lines, pavement edges, and sidewalk locations
• Walls, retaining structures, and other built features
• Visible utility structures like manholes, valves, and vaults
• Drainage structures and major grade breaks across the site

Leave any of these out, and you create blind spots. Those blind spots usually surface later, once an engineer finds a conflict the base map never caught.

Street Connections Can Shape the Whole Concept

Urban redevelopment sites rarely work apart from the streets and public infrastructure around them. Access points, street grades, and nearby roads and pipes can all shape what a concept can achieve, especially on tighter urban parcels with little room to spare.

Capture facts beyond the parcel itself when they truly affect the project. That gives designers a fuller picture than a narrow view stuck right at the property line. That wider view often changes what the concept can do, and it is worth the extra reach.

How Dense Should Topographic Data Be?

The right level of detail depends on several things working together. How complex the ground is. What the design purpose calls for. How densely built the site already is. And what accuracy the team needs to work with confidence.

A simple, open site with few features needs less data. A tightly packed urban parcel with many structures and utilities needs more. Match the data density to the real project need. That keeps the survey efficient without dropping the detail designers depend on.

From Field Measurements to a Design Model

Raw field measurements only become useful once someone organizes them, usually into a CAD file or a digital surface model. This step turns single data points into a coherent model of the site as it stands.

That model becomes the foundation for everything that follows, including grading design, utility work, and new construction layout. This is why the quality of the final data delivery matters as much as the accuracy of the original field measurements. Both have to be right for the design to hold.

Frequently Asked Questions

Can a topo survey include sidewalks and street elevations outside the parcel?

Yes. When those features truly affect the redevelopment design, they are often included even though they sit outside the property line. This gives designers a complete picture of how the site connects to its surroundings.

Are visible utility structures normally mapped during an urban topo survey?

Yes. Manholes, valves, vaults, and other visible utility structures are usually located and included. This information helps engineers plan around existing utility systems during design and lowers the chance of conflicts between new construction and existing lines.

Can existing buildings remain on the base map if they will later be demolished?

Yes. Documenting buildings before demolition is common practice. That information can still support planning, permitting, and design even after the structures come down, and it gives a useful record of the site’s condition before redevelopment begins.

Does redevelopment need more topographic detail than vacant-land design?

Generally yes. Developed sites hold more existing features that need to be documented alongside the natural ground. Vacant land usually needs less data density since there are fewer built conditions competing for the design team’s attention.

What file information may an engineer request from the surveyor?

Engineers often request CAD files, digital surface models, or specific data formats that match their design software. Confirming these needs before fieldwork begins helps the final deliverable fit the team and avoids rework or reformatting later.
